Monitoring Format

The Monitoring Format is the target format for which the renderer will create the loudspeaker feeds. Be default, this should match your Monitoring Path. However, it can be a different format than the monitoring path format and can include binaural. Only formats that fit into the monitoring path width can be selected as the Monitoring Path.

For example, if your hardware setup and Monitoring Path is 5.1.4 you can select 5.1 as a Monitoring Format for the MPEG-H Renderer. The renderer will create a 5.1 mix of your MPEG-H scene which is played back via the first six channels of your Monitoring Path.

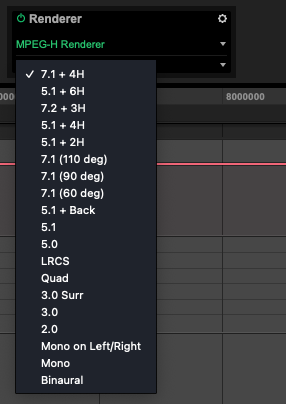

The monitoring format is selected from the drop-down menu in the Renderer Control Panel.
